Front & Rear RideTech Air Suspension 11340298 Fits 1963-70 C10

Front & Rear RideTech Air Suspension 11340298 Fits 1963-70 C10

Regular price $6,855.00 USD
Regular price Sale price $6,855.00 USD
Sale Sold out
Free Shipping to USA 48
**International Customers **
Please Contact Us For Shipping Quote


1963-1970 C10 RideTech -?ÿ11340298?ÿ
Front and Rear Air Suspension Kit?ÿ

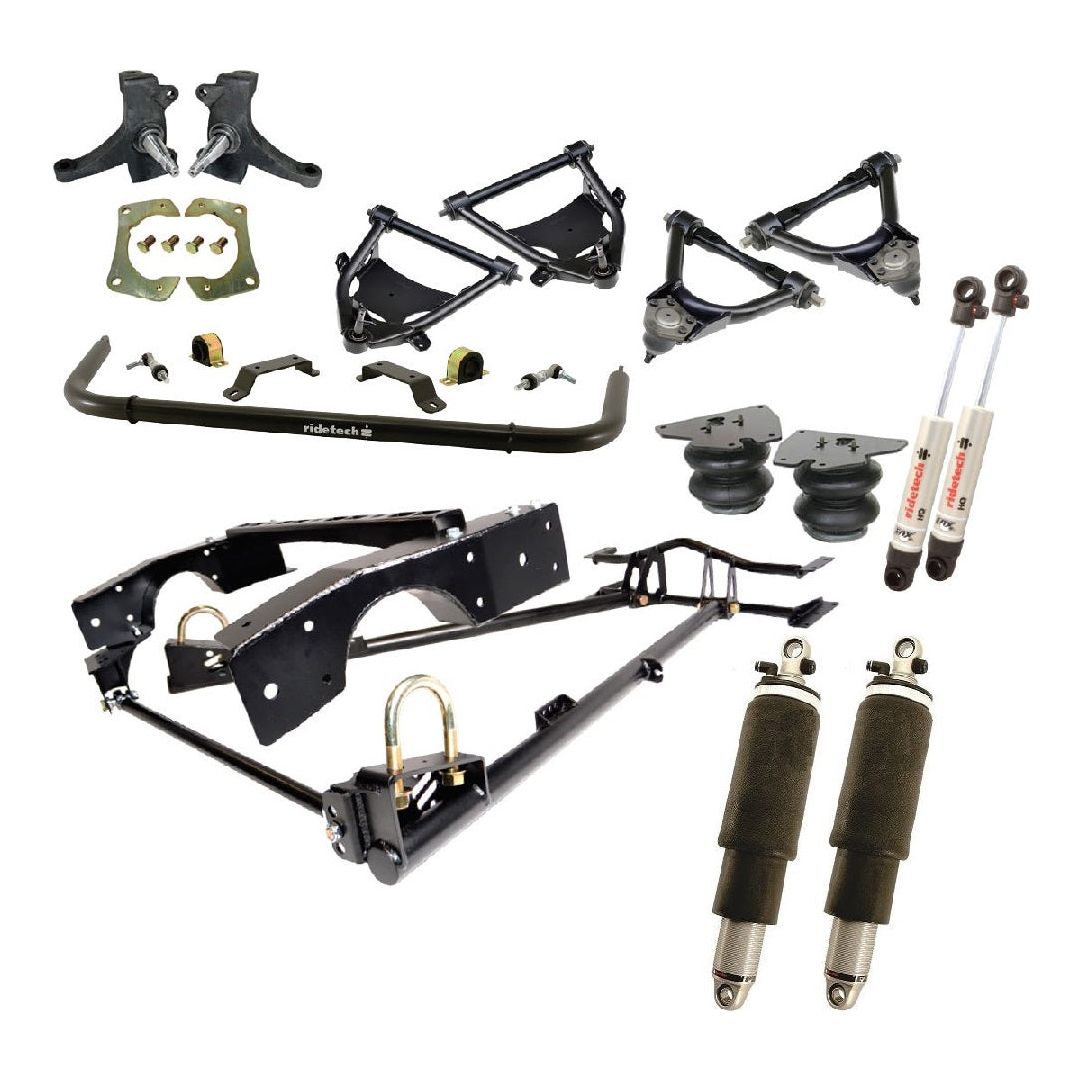

The 1963-1970 Chevrolet & GMC C10 Truck's Air Suspension System is tailored-made for ultra low ride height, offering modern driveability. The package contains upper and lower front control arms, 2.5" drop spindles, adjustable front shocks with air springs, a front sway bar, StrongArms with C-Notces, an adjustable panhard bar and HQ Series rear Shockwaves. All components are included to make selecting a suspension system hassle-free.

1963 - 1970 CHEVROLET C10 PICKUP
1966 GMC 1000
1963 - 1965 GMC 1000 SERIES
1966 GMC 1500
1963 - 1965 GMC 1500 SERIES
1967 - 1970 GMC C15/C1500 PICKUP

  • 2.5" Drop Spindles?ÿallows a lowered stance while maintaining suspension travel. The modular design allows for variety of brake options including Baer, Wilwood or the stock HD brakes (1.25" wide rotors).
  • Upper & Lower StrongArms feature corrected ball joint angles and increased caster to improve high speed stability and steering feel. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction. They are powdercoated black and fully assembled with ball joints, bushings and cross shafts, ready for installation.?ÿ
  • Front CoolRide setup includes HQ Series Shocks and bolt-on upper shocks mounts to allow more ground clearance and maximum suspension travel.???? The aluminum body shocks are a monotube design, are rebound adjustable and come with a 1,000,001 Mile Warranty.?ÿ
  • Rear StrongArm System is completely bolt-on and provides mounting for the rear Shockwaves. The front trailing arm crossmember is designed to allow the exhaust to be run through it rather than under it providing additional ground clearance. The panhard is adjustable so you can optimize your tire clearance at the new lowered height and the mount has been relocated to optimize the bar length and angle for the lowered height. This helps keep the rearend centered in the truck and lowers the roll center to minimize body roll.?ÿWe use R-Joints on both ends of the bar. The C-notches are included with the kit and FIT the frame rail. The trailing arms optimize the driveline angles for the lowered stance and utilize R-Joint at the front attachment.
  • HQ Series Shockwaves utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty.
  • Front MucleBar Sway Bar helps reduce body roll and includes the PosiLink endlinks that provide immediate engagement between the chassis and control arms.
