Ridetech Specs: HQ Coil-Over System for 1973-1987 C10.

Ridetech Coilover Suspension System for 1973–1987 Chevy C10 Squarebody – 4"/6" Drop

Complete Coilover Suspension Upgrade for Squarebody C10 Trucks

Upgrade your 1973–1987 Chevy C10 Squarebody truck with the Ridetech Coilover Suspension System and experience modern performance, improved handling, and an aggressive lowered stance. This complete suspension kit provides a 4" front drop and 6" rear drop, transforming your classic pickup into a true muscle truck while maintaining excellent ride quality.

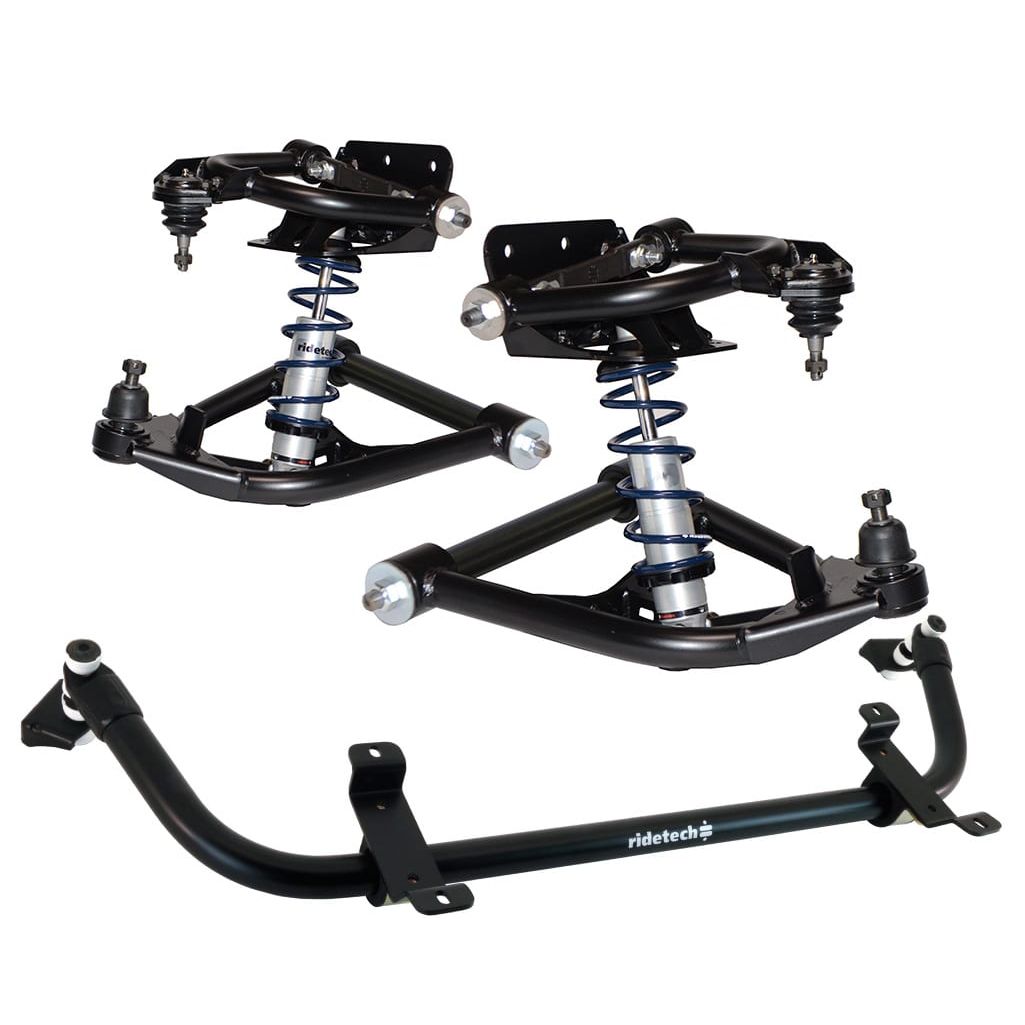

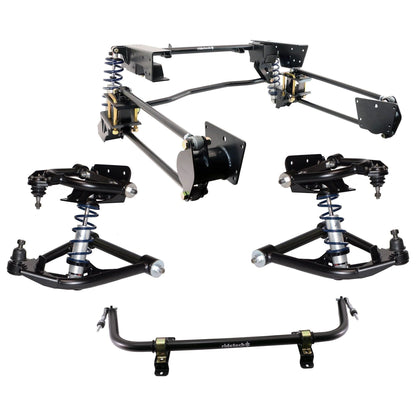

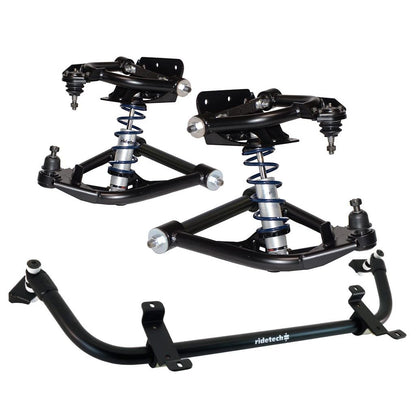

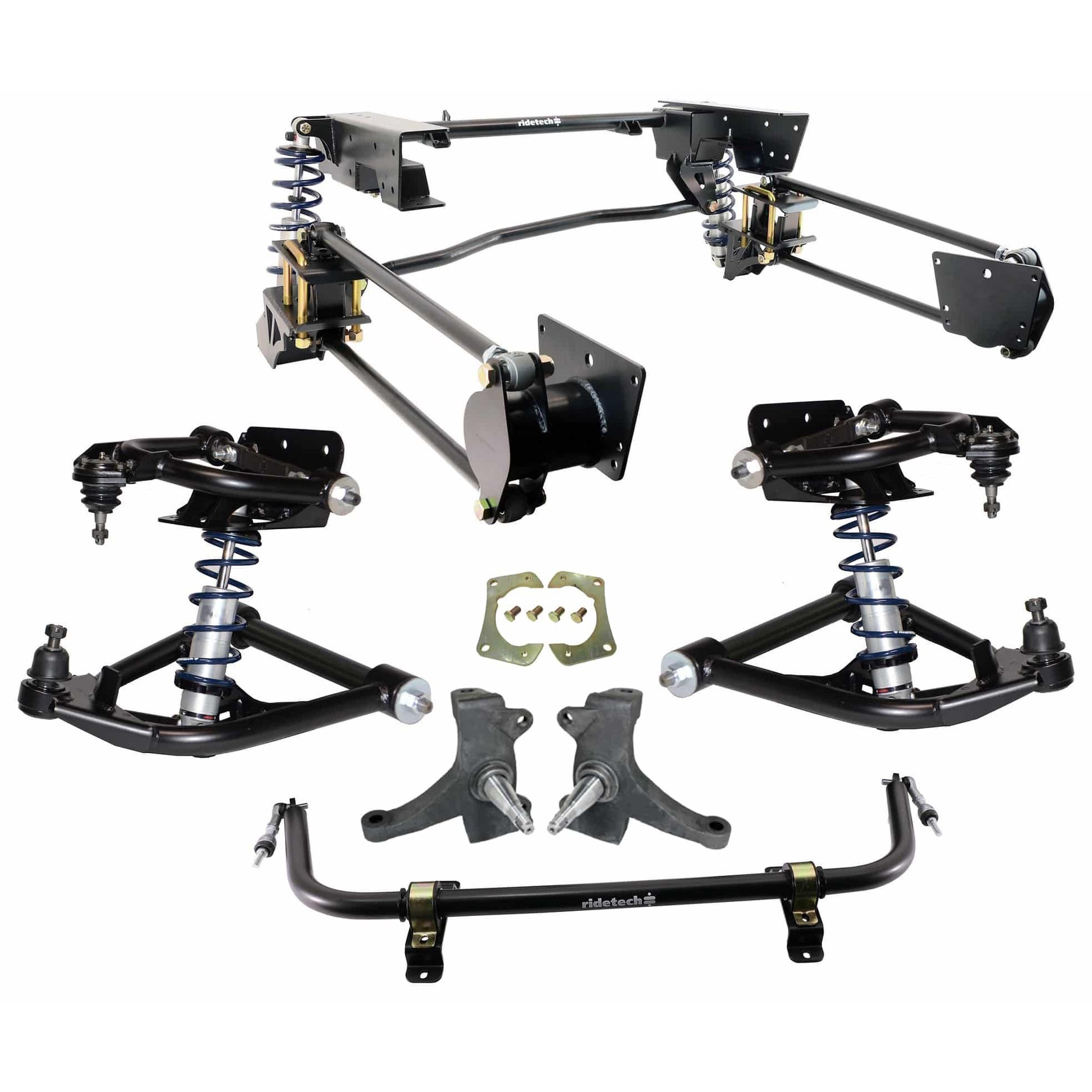

Ridetech designed this system to dramatically improve steering response, cornering performance, and ride comfort. The kit includes drop spindles, StrongArm control arms, HQ Series coilovers, a MuscleBar sway bar, and a bolt-on rear 4-link suspension system. Every component works together to deliver modern suspension performance for your classic Squarebody C10.

This complete C10 suspension upgrade includes everything required to install the system and achieve improved stance, better traction, and precise handling on the street or highway.

Key Features

4" Front / 6" Rear Ride Height Drop
Provides an aggressive lowered stance while maintaining suspension travel and ride quality. Actual ride height may vary depending on wheel and tire size.

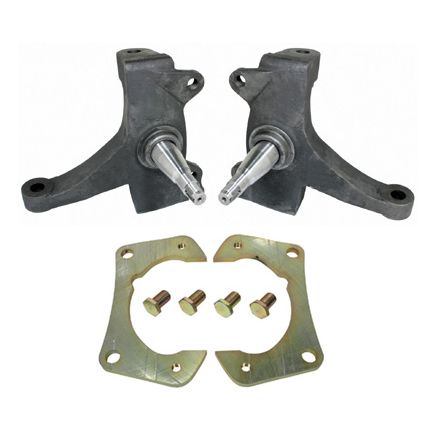

2" Drop Spindles
Engineered to increase negative camber gain for improved tire contact during cornering. The 2-inch pin drop allows the use of longer shocks, increasing suspension travel and ride comfort.

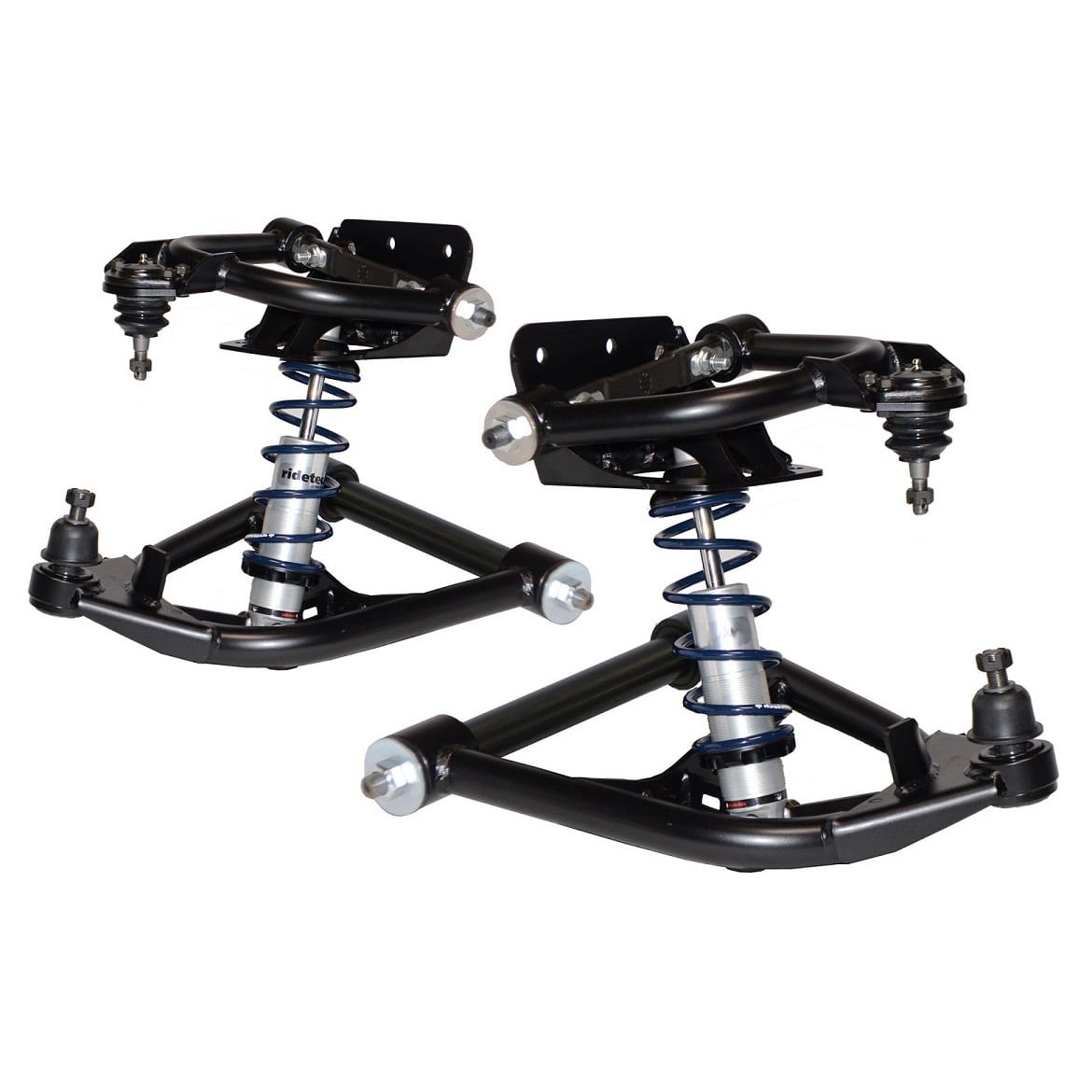

Ridetech Upper StrongArms
Designed with corrected ball joint angles and increased caster capability to improve high-speed stability and steering feel. Injection-molded Delrin bushings with 13% Teflon reduce suspension deflection and friction.

Ridetech Lower StrongArms
Feature a double-shear lower shock mount for increased strength and durability. The lower ball joint is repositioned to improve caster while keeping the wheel centered in the wheel opening. Includes cross shafts and installation hardware.

HQ Series Adjustable Coilovers
Ridetech HQ coilovers feature an impact-forged aluminum body and monotube shock design for excellent ride quality and handling. Adjustable rebound allows fine tuning of suspension performance, with adjustment knobs accessible under the hood.

Front MuscleBar Sway Bar
Manufactured from massive 1.5" x .250" wall tubing to minimize body roll and improve cornering stability. Includes billet aluminum frame straps and low-friction bushings for smooth suspension operation.

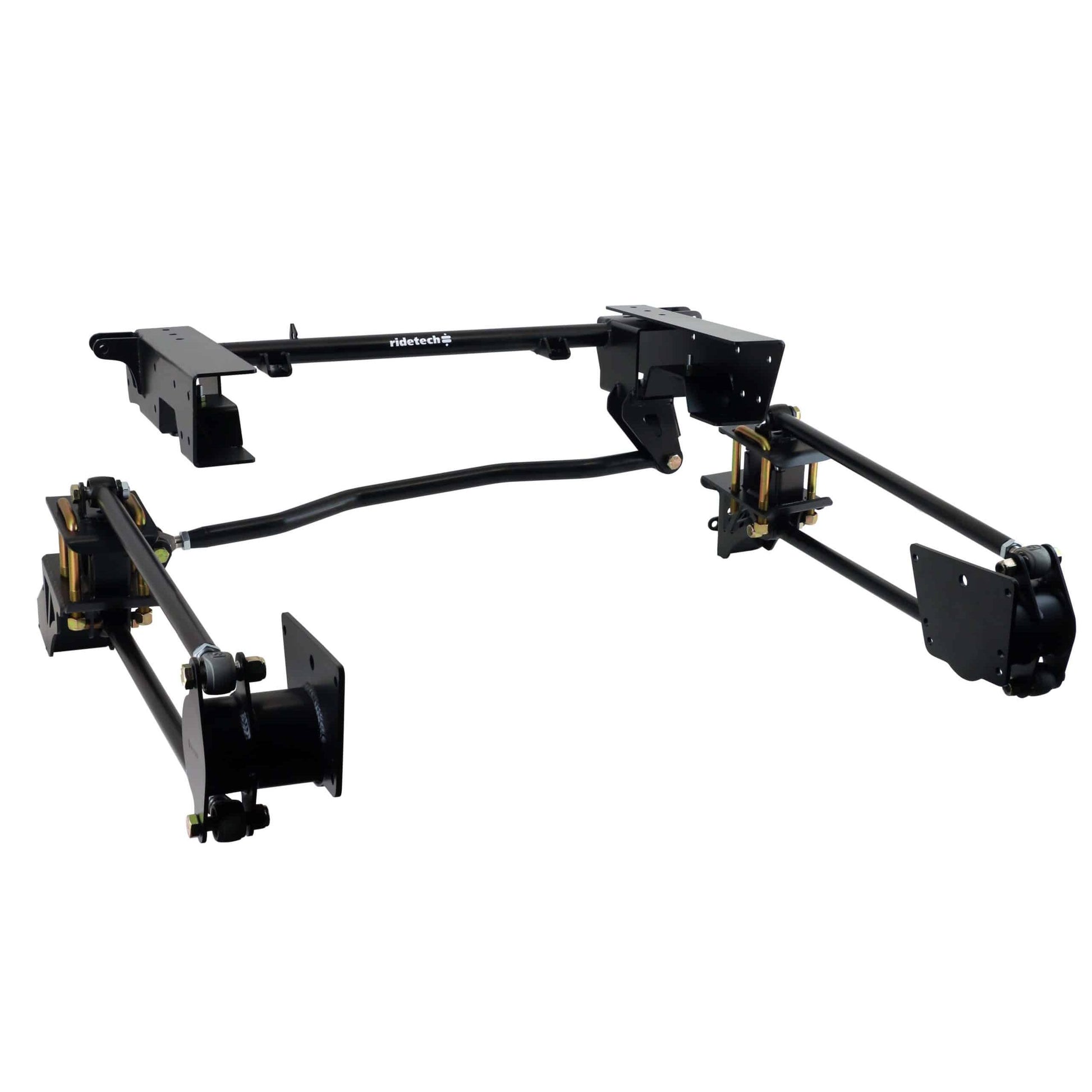

Rear Bolt-On 4-Link Suspension
The Ridetech rear 4-link system increases traction and strength while utilizing R-Joint Technology to provide low-friction movement, lateral stability, full articulation, and quiet operation.

The rear suspension is a 100% bolt-on design requiring minimal cutting and no welding. C-notch brackets tie directly into the upper crossmember while link bar mounts use factory bolt holes and axle mounting points.

Vehicle Fitment

Compatible with the following 2WD Squarebody trucks:

1973–1974 Chevrolet C10 Pickup
1975–1986 Chevrolet C10
1987 Chevrolet R10

1973–1974 GMC C15 / C1500 Pickup
1975–1978 GMC C15
1979–1986 GMC C1500
1987 GMC R1500

Compatible with all cab and bed configurations.

Upgrade your Squarebody C10 suspension with Ridetech coilovers and experience modern handling, improved traction, and the perfect lowered stance.
